Lantech Industrial Gigabit Switch

Product Overview

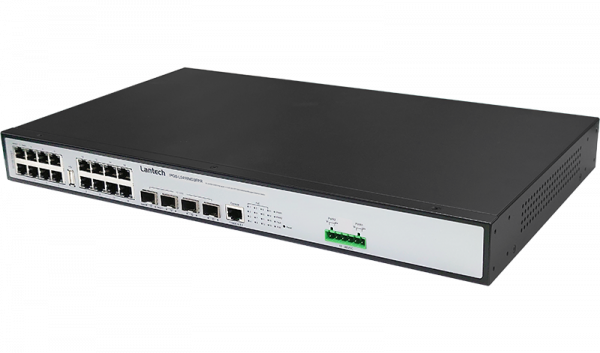

The Lantech IGS-L5416MGSFPR-DCI is a powerful, high-capacity Layer 2+ industrial managed Gigabit switch designed to deliver dependable and high-speed network communication in rugged environments. Featuring 16 Gigabit RJ45 ports, 4 SFP uplinks, and 2 10G SFP+ slots, this switch is built for large-scale, mission-critical industrial networks where uptime, bandwidth, and reliability are non-negotiable.

Comprehensive Port Configuration

This model comes equipped with:

• 16 x 10/100/1000Base-T ports for edge

  devices

• 4 x 100/1000Base-X SFP slots for long-distance fiber connections

• 2 x 10G SFP+ uplink slots for high-throughput backbone connectivity

This port flexibility makes the IGS-L5416MGSFPR-DCI ideal for applications requiring both horizontal and vertical scalability, such as smart city infrastructure, power plants, or intelligent transport systems (ITS).

Dual DC Input for Power Redundancy

The switch supports dual DC input (12–48VDC) with reverse polarity and surge protection, ensuring that power disruptions do not lead to network downtime. This design feature enhances fault tolerance and supports deployments in remote or unattended industrial sites.

Industrial-Grade Durability

Engineered to handle extreme conditions, the IGS-L5416MGSFPR-DCI features a rugged IP30-rated metal enclosure. It performs reliably in wide temperature environments ranging from -40°C to +75°C, making it suitable for roadside cabinets, outdoor enclosures, and utility substations.

Its fanless thermal design ensures quiet operation and reduces maintenance needs, while DIN-rail mounting supports easy integration in compact control panels.

Advanced Layer 2+ and Lite Layer 3 Features

This switch offers a full suite of Layer 2+ management functions, including:

• 802.1Q VLAN, GVRP, Private VLAN

• QoS (802.1p/DSCP) traffic prioritization

• IGMP snooping, MLD snooping, and multicast filtering

• LACP, port mirroring, storm control

• STP/RSTP/MSTP, loop protection

• DHCP Server/Relay, static routing (Layer 3 Lite)

• SNMP v1/v2c/v3, Syslog, RMON, NTP

These features allow for network segmentation, traffic shaping, and secure remote management. You can access and configure the switch through Web GUI, CLI, SNMP, or Telnet, enabling seamless integration with existing monitoring systems.

Why Choose Lantech IGS-L5416MGSFPR-DCI

• 16 Gigabit RJ45 ports with 4 SFP + 2 10G SFP+ uplinks

• Dual DC input with surge and reverse polarity protection

• Wide operating temperature: -40°C to +75°C

• Fanless industrial design with IP30-rated housing

• Layer 2+ and Lite Layer 3 features for advanced traffic control

• Easy remote management via SNMP, Web GUI, and CLI

• Ideal for large-scale automation, ITS, utilities, and surveillance
